Self Hosting

Requirements

checks-out ships as a single binary file. If you are planning on integrating with GitHub Enterprise it requires version 2.4 or higher.

Configuration

This is a full list of configuration options. Please note that many of these options use default configuration value that should work for the majority of installations.

Environment Variables for checks-out

This document contains information about all the environment variables that can or must be defined for checks-out to function.

Server configuration

Server IP Address and Port

  • Format: SERVER_ADDR="_ip_address_:_port_" but more specifically see the documentation for golang’s http.ListenAndServe and http.ListanAndServeTLS
  • Default: :8000, which means port 8000 on all interfaces
  • Required: No

See https://golang.org/pkg/net/http/#ListenAndServe for detailed documentation on the format.

Server SSL Certificate

  • Format: SERVER_CERT="_full_path_and_filename_of_ssl_server_cert_file_"
  • Default: None
  • Required: No

If SERVER_CERT is not specified, checks-out runs without SSL. See https://golang.org/pkg/net/http/#ListenAndServeTLS for detailed documentation on the format.

Server SSL Key

  • Format: SERVER_KEY="_full_path_and_filename_of_ssl_server_key_file_"
  • Default: None
  • Required: Only if SERVER_CERT is also specified

If SERVER_CERT is specified, then SERVER_KEY must be specified as well. See https://golang.org/pkg/net/http/#ListenAndServeTLS for detailed documentation on the format.

Database configuration

Database Driver

  • Format: DB_DRIVER=sqlite3|postgres|mysql
  • Default: None
  • Required: Yes

Database Datasource

  • Format: DB_SOURCE="_db_driver_specific_datasource_spec_"
  • Default: None
  • Required: Yes

Please refer to the datasource specifications for the sqlite3, lib/pq, and mysql drivers for their respective specifications for this environment variable.

Slack integration

  • Format: SLACK_TARGET_URL="_slack_integration_url"
  • Default: None
  • Required: No

If the SLACK_TARGET_URL is not defined, then no logging into slack will happen, however it will also currently cause logging that Slack is not configured to get generated every time a slackable event happens.

Github integration

Email Address To Use for Github

  • Format: GITHUB_EMAIL="_valid_email_address_"
  • Default: None
  • Required: Yes

Email address for git commits.

URL for Github API

  • Format: GITHUB_URL="_protocol_plus_hostname_plus_path_prefix_of_url_"
  • Default: https://github.com
  • Required: No, defaults to https://github.com which is fine unless you are using your own enterprise github

Github OAuth2 Client ID

  • Format: GITHUB_CLIENT="_your_OAuth2_client_id_"
  • Default: None
  • Required: Yes. You must supply the github OAuth2 client ID issued by the github server you are connecting to (github.com or enterprise-hosted github server)

Github OAuth2 Secret

  • Format: GITHUB_SECRET="_your_OAuth2_secret_"
  • Default: None
  • Required: Yes. You must supply the github OAuth2 secret issued by the github server you are connecting to (github.com or enterprise-hosted github server)

Github Scope To Use

  • Format: GITHUB_SCOPE="_valid_github_scope_specification_". Please see github documentation for specifics on the specification format
  • Default: read:org,repo:status,admin:repo_hook,admin:org_hook
  • Required: No

Permissions granted to checks-out by Github. The minimum required permissions are the default ones.

Github rate limiting

  • Format: GITHUB_BATCH_PER_SECOND=int
  • Default: 10
  • Required: no

GitHub batch access rate limiter. For certain calls that might happen in rapid succession, this limits how fast those calls are made to the server. The value is in Hertz; the default value of 10 means that you cannot send more than 10 calls a second to Github.

Github testing-only settings

Enable Github Integration Tests

  • Format: GITHUB_TEST_ENABLE=true|false
  • Default: False
  • Required: No

Enable Github integration tests to run

Github Integration Tests OAuth2 Token

  • Format: GITHUB_TEST_TOKEN=__OAUTH2_TOKEN_TO_USE
  • Default: None
  • Required: _only if GITHUB_TESTENABLE is true

This is an OAuth2 token to be sent to the github endpoint for github integration test API requests

Logging/Debug

Debug Logging

  • Format: LOG_LEVEL=debug|info|warn|error|fatal|panic
  • Default: info
  • Required: No

Specifies the default logging level used in checks-out.

Checks-out Sunlight

  • Format: CHECKS_OUT_SUNLIGHT=true|false
  • Default: false
  • Required: No

If set to true, exposes endpoints and data that might not be suitable for a live site. Specifically, the following behaviors are enabled:

  • /api/repos endpoint is available that will show all repositories managed under checks-out
  • /version endpoint is available that will show the checks-out version
  • Outputs stack trace information over HTTP when errors happen
  • Puts the X-CHECKS-OUT-VERSION HTTP header with the checks-out version in every response

Blacklist User Agents from Logging

  • Format: BLACKLIST_USER_AGENTS=user_agent1[]:user_agent2...:user_agent_N]
  • Default: false
  • Required: No

Specify a colon-separated list of user agent strings for the middleware that does request logging to skip logging on. This allows suppressing logging of user agents like the health checker from aws that are generally operational noise.

How Frequently To Log Operational Statistics

  • Format: LOG_STATS_PERIOD=_valid_time.ParseDuration()_string_
  • Default: 0 (Do not periodically log)
  • Required: No

Specify a time duration in a valid format understood by the time.ParseDuraction() method to periodically log activity of checks-out such as number of commits, approvers, and disapprovers in the specified time period.

Caching

Response caching

  • Format: CACHE_TTL=_time_specified_in_time.Duration_format_
  • Default: 15 minutes
  • Required: No

Determines the length of time the gin middleware will cache. Default is 15 minutes.

Github Repo Artifact Caching

  • Format: LONG_CACHE_TTL=_time_specified_in_time.Duration_format_
  • Default: 24 hours
  • Required: No

Determines the length of time checks-out will cache github artifacts like user information, organization members, and team members in memory before going back to the server. Default is 24 hours.

Account Creation Control

Limit User Access

  • Format: LIMIT_USERS=true|false
  • Default: false
  • Required: No

If enabled, only users listed in the limit_users table in the database are allowed to create accounts. Any existing accounts will still function, even if the user’s name is not in the limit_users table.

Limit Organizational Access

  • Format: LIMIT_ORGS=true|false
  • Default: false
  • Required: No

If enabled, only users in the organizations listed in the limit_orgs table in the database are allowed to create accounts. Any existing accounts will still function, even if the user is not any of the orgs named in the limit_orgs table.

If both LIMIT_ORGS and LIMIT_USERS are set to true then a user can either be explicitly named in limit_users or can belong to an org named in limit_orgs.

Miscellaneous Properties

Documentation Location

  • Format: CHECKS_OUT_DOCS_URL=_URL_for_docs_no_closing_slash_
  • Default: https://www.capitalone.io/checks-out
  • Required: No

Provides the base URL for links to the documentation in the UI.

Slack Integration

  • Format: SLACK_TARGET_URL=url
  • Default: none
  • Required: no

Provides the default Slack notification url. This is the URL that’s used by defaut for slack integration when the target specified in the .checks-out file is “slack”.

Admin management

  • Format: GITHUB_ADMIN_ORG=_github_org_name_
  • Default: none
  • Required: no

Specifies the Github organization whose members have admin privleges in checks-out. If this is not specified, there are no admin users in checks-out. Admin users have access to certain REST API endpoints that other users do not.

Template Repo Name

  • Format: ORG_REPOSITORY_NAME=_name_for_template_repo_per_org_
  • Default: checks-out-configuration
  • Required: No

Org management repo name. This is the name of the repo in an org that is used to hold the default .checks-out and MAINTAINERS files for all repos in the org.

Legacy Properties

The following environment variables exist to provide system-wide defaults for repos that are still using a .lgtm file. They are considered obsolete

  • Format: CHECKS_OUT_APPROVALS=_number_of_approvals_
  • Default: 2
  • Required: No

Legacy default number of approvals

  • Format: CHECKS_OUT_PATTERN=_regex_for_approval_comments_
  • Default: (?i)LGTM
  • Required: No

Legacy matching pattern

  • Format: CHECKS_OUT_SELF_APPROVAL_OFF=true|false
  • Default: false
  • Required: No

Legacy self-approval behavior. Set to true to disable self-approvals.

Registration

Register your application with GitHub (or GitHub Enterprise) to create your client id and secret. It is very import that the redirect URL matches your http(s) scheme and hostname exactly with /login as the path.

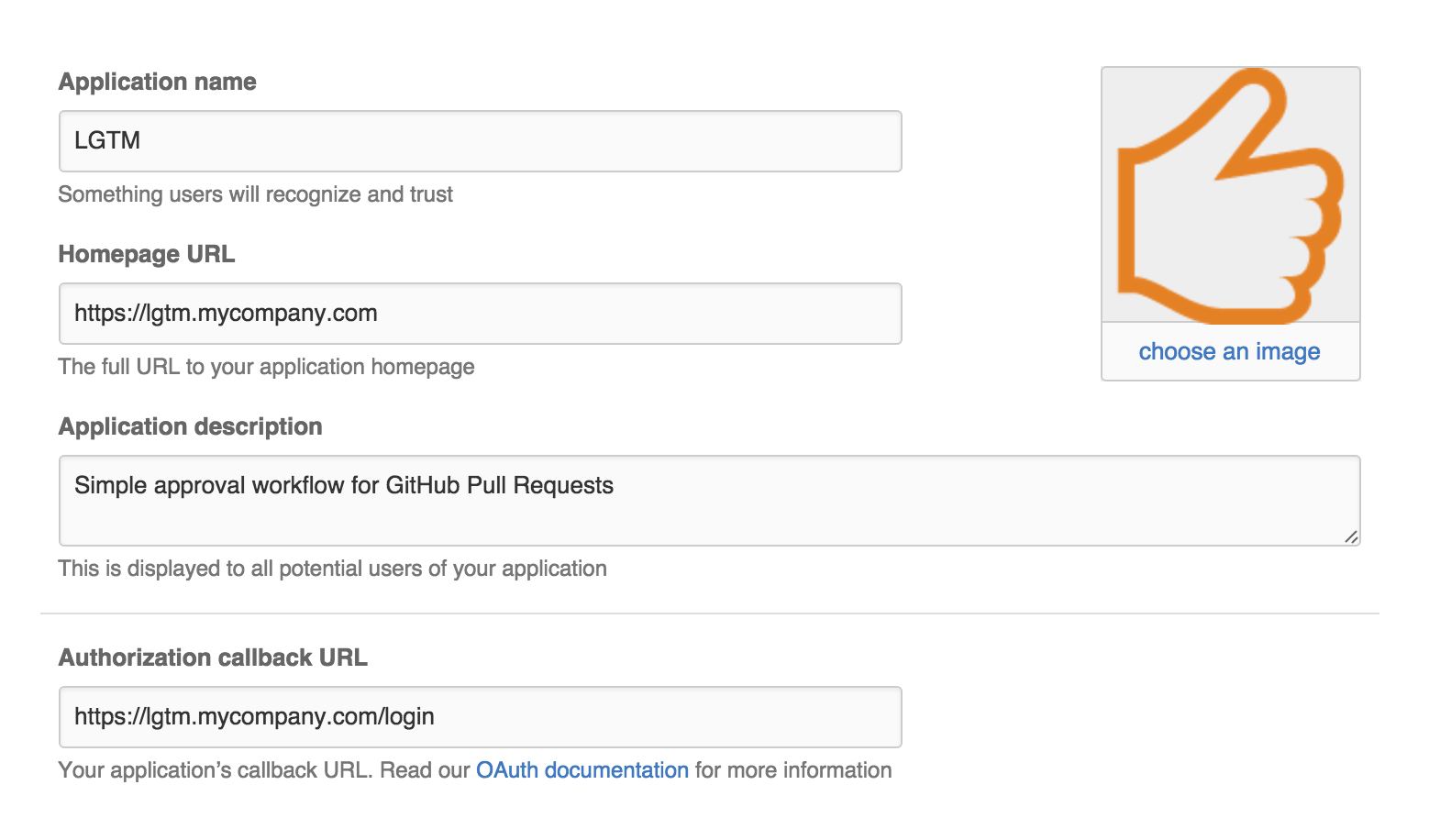

Please use this screenshot for reference:

github registration

Reverse Proxies

If you are running behind a reverse proxy please ensure the X-Forwarded-For and X-Forwarded-Proto variables are configured.

This is an example nginx configuration:

location / {
    proxy_set_header X-Forwarded-For $remote_addr;
    proxy_set_header X-Forwarded-Proto $scheme;
    proxy_set_header Host $http_host;
	proxy_pass http://127.0.0.1:8000;
}

This is an example caddy server configuration:

checks-out.mycomopany.com {
        proxy / localhost:8000 {
                proxy_header X-Forwarded-Proto {scheme}
                proxy_header X-Forwarded-For {host}
                proxy_header Host {host}
        }
}

Note that when running behind a reverse proxy you should change the recommended port mappings from --publish=80:8000 to something like --publish=8000:8000.
